Brand Name : XCMG
Model Number : XD105T
Certification : IOS/CE
Place of Origin : Jiangsu, China (Mainland)
MOQ : 1
Price : Call for price
Payment Terms : T/T
Delivery Time : 7-15days
Packaging Details : Container or Shipped by Ro-Ro or Bulk shipment
| Model: Road Roller | Condition: Brand New | Application: Construction |
| Brand Name: XCMG | Model Number: XD105T | Certification: ISO, CE |
| Operating Weight: 10000kgs | Static Linear Load: 292N/cm | Dimension: 4790×1680×3080mm |
| Working speed(F/R): 0-12 km//h | Vibration Frequencyr:55/45Hz | Place of Origin: Jiangsu, China (Mainland) |
| Warranty: 1 year | Nominal amplitude: 0.35/0.6mm | After-sales Service Provided: Engineers available to service machinery overseas |
| Item | Content | Unit | XD105T |
| Weight Parameters | Operating weight | kg | 10000 |
| Front axle weight | kg | 5000 | |
| Rear axle weight | kg | 5000 | |
| Static linear load (front/rear) | N/cm | 292/292 | |
| Maneuverability | Operating speed | km/h | 0~12 |
| Theoretical gradeability | 35% | ||
| Minimum turning radius (inside/outside) | mm | 4800/6480 | |
| Minimum ground clearance | mm | 290 | |
| Wheelbase | mm | 3570 | |
| Steering angle | ±35º | ||
| Oscillation angle | ±8° | ||
| Braking distance | m | ≤4.36 | |
| Compaction Parameters | Vibration frequency | Hz | 55/45 |
| Nominal amplitude | mm | 0.5/0.9 | |
| Excitation force (high/low frequency) | kN | 90/110 | |
| Drum diameter | mm | 1220 | |
| Drum width | mm | 1680 | |
| Engine | Charge pressure, drive system | MPa | 2.4 |
| Peak pressure, drive system | MPa | 38 | |
| Peak pressure, vibration system | MPa | 32 | |
| Peak pressure, steering system | MPa | 17.5 | |
| Model | F3.8(Stage V) | ||
| Rated power | kW | 90 | |
| Rated speed | r/min | 2200 |

|
|

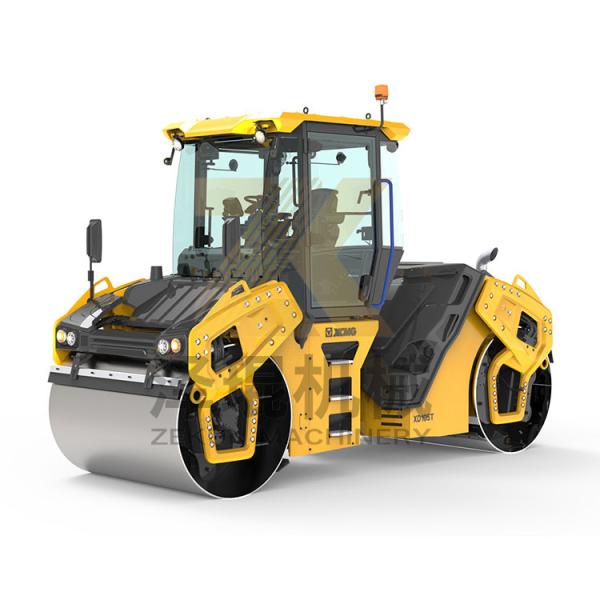

10ton XCMG XD105T Double Drum Roller EU Stage V Road Construction Equipment Images |
